* NOTE: Image may not exactly match the product

Cisco WS-C2960S-24TS-S

The Cisco WS-C2960S-24TS-S is a high-performance 24-port Gigabit Ethernet switch designed for enterprise access layer deployments. This stackable switch delivers wire-speed switching with 24 10/100/1000 ports plus 4 SFP uplink ports, providing 56 Gbps switching capacity and 41.67 Mpps forwarding rate.

**Key Features:**
– 24 Gigabit Ethernet ports with 4 SFP uplinks
– Advanced security with 802.1X, DHCP snooping, and IP Source Guard
– Energy-efficient design with Cisco EnergyWise technology
– FlexStack stacking capability for simplified management
– Comprehensive QoS with 4 egress queues per port
– IPv6 ready with dual-stack support

**Benefits:**
– Reduces network complexity through intelligent switching and VLAN support
– Lowers operational costs with energy-saving features and fanless operation
– Enhances security posture with multiple threat mitigation technologies
– Simplifies deployment with Cisco Auto Smartports and plug-and-play setup
– Future-proofs infrastructure with IPv6 readiness and software upgradability

**Unique Selling Points:**
– Industry-leading Cisco IOS software reliability and feature set
– Lifetime limited hardware warranty with next-business-day replacement
– Seamless integration with Cisco network management tools
– Proven enterprise-grade performance with sub-2.5μs latency
– Cost-effective solution combining advanced features typically found in higher-tier switches

Quote1 Piece(MOQ)

Bulk Order Discounts Available

Sound PowerLwA (Typical)5.4 B LwAD (Maximum)5.7 B
MTBF in hours335,014
Dimensions (H x W x D)Inches1.75 x 17.7 x 11.8 Centimeters4.5 x 45 x 30
Acoustic NoiseMeasured per ISO 7779 and declared per ISO 9296. Bystander positions operating mode at 25C ambient.
Flash memory64 MB

WS-C2960S-24TS-S (USED) Overview
The Cisco Catalyst 2960-S Series Switches WS-C2960S-24TS-S is WS-C2960S-24TS-L lited from Lan Base software to Lan Lite for more economical and easier to manage for customers of entry-level branch office or wiring closet networks. WS-C2960S-24TS-S simplifies the migration from nonintelligent hubs and unmanaged switches to a fully scalable and reliable network, the LAN Lite IOS software supports standard Layer 2 security, QoS, and availability while lowering the network total cost of ownership.

Quick Specs

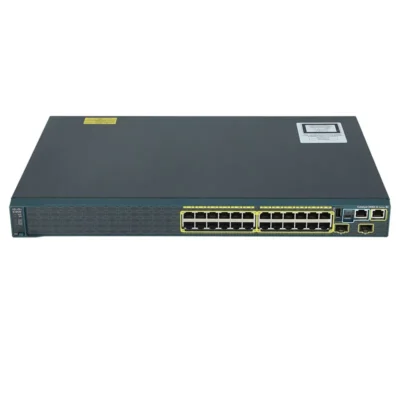

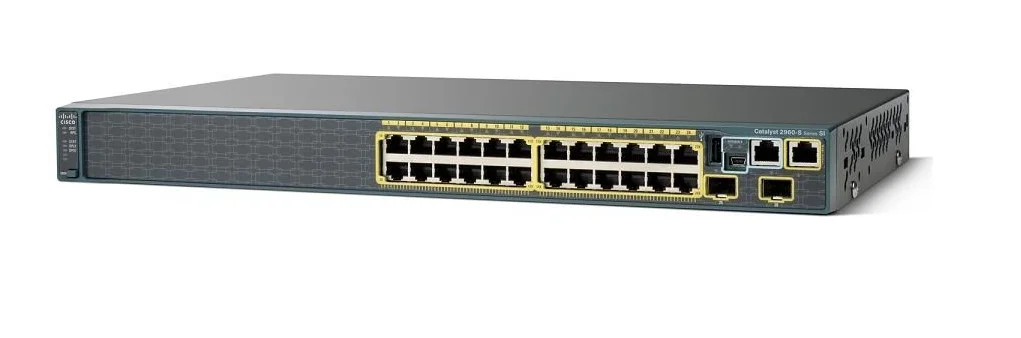

Figure 1 shows the appearance of the WS-C2960S-24TS-S.

Product Details

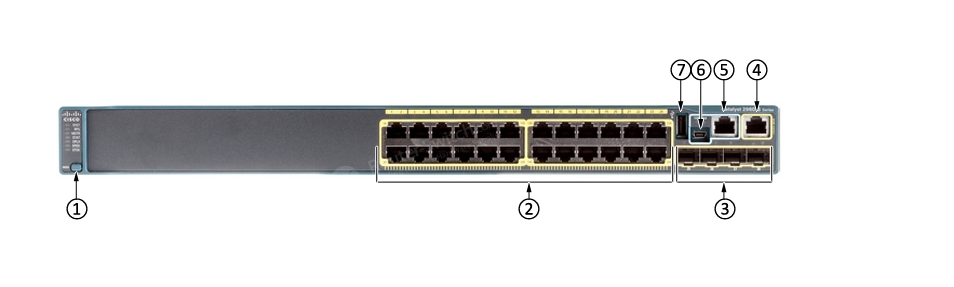

Figure 2 shows the front panel of the WS-C2960S-24TS-S.

Sound Power

LwA (Typical)5.4 B LwAD (Maximum)5.7 B

MTBF in hours

335,014

Dimensions (H x W x D)

Inches1.75 x 17.7 x 11.8 Centimeters4.5 x 45 x 30

Acoustic Noise

Measured per ISO 7779 and declared per ISO 9296. Bystander positions operating mode at 25C ambient.

Flash memory

64 MB

Forwarding Performance

38.7 mpps

DRAM

128 MB

Power Rating

0.08 kVA

Voltage (Autoranging)

100 to 240 VAC

Weight

Pounds10 Kilograms4.5

Sound Pressure

LpA (Typical)44 dB LpAD (Maximum)47 dB
