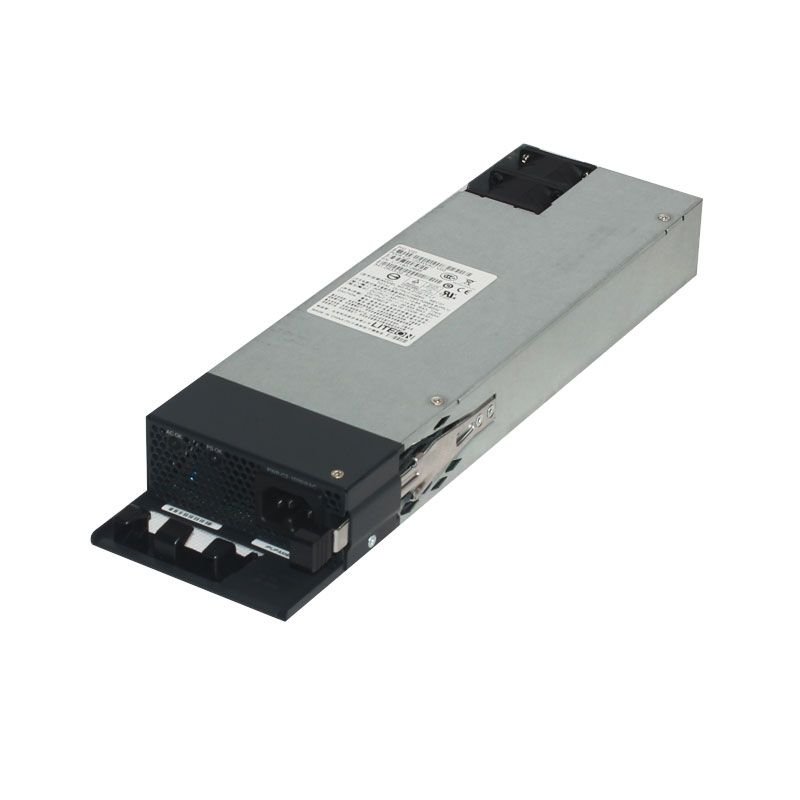

PWR-C2-1025WAC | Cisco Catalyst 2960XR and 3650 | Power Supply | Spare
The PWR-C2-1025WAC Power supply module is an auto ranging PSU manufactured by Cisco Systems, Inc designed to provide 1025-watt AC power supply power to Cisco Catalyst 2960 XR and 3650 series switches. The power supply is designed to operate on 115-240V AC input voltage and has a frequency range of 50-60 Hz. This power supply is only compatible with the 2960XR and not standard 2960X.
The power supply has a hot-swappable design, which enables it to be replaced while the switch is still operating without causing any downtime. It further supports power management features such as Cisco Energy Wise technology and provides support for power over Ethernet (PoE) providing up to 740 watts to connected devices.
The device comes with the IEC 320-C16 Power-supply input receptacle used to connect power cords to electronic devices. It is a 2-pole, 2-wire grounded connector that is designed to handle up to 6 Amps of current and is rated for up to 250 volts AC. The device provides a Total Output BTU of 3497 BTU/hr, 1025W. It has an output holdup time of 10 ms minimum @ 102.5VAC.
*Please note that this power supply is only compatible with the 2960XR and not standard 2960X
Features:
- 1025W Power Supply
- 3497 BTU/hr Total Output
- 12-6 Amp Input Current
- -54 V @ 14.6 Amp and 12V @ 20.83Amp Output Current
- Storage Temperature of -40 to 158°F (-40 to 70°C)
