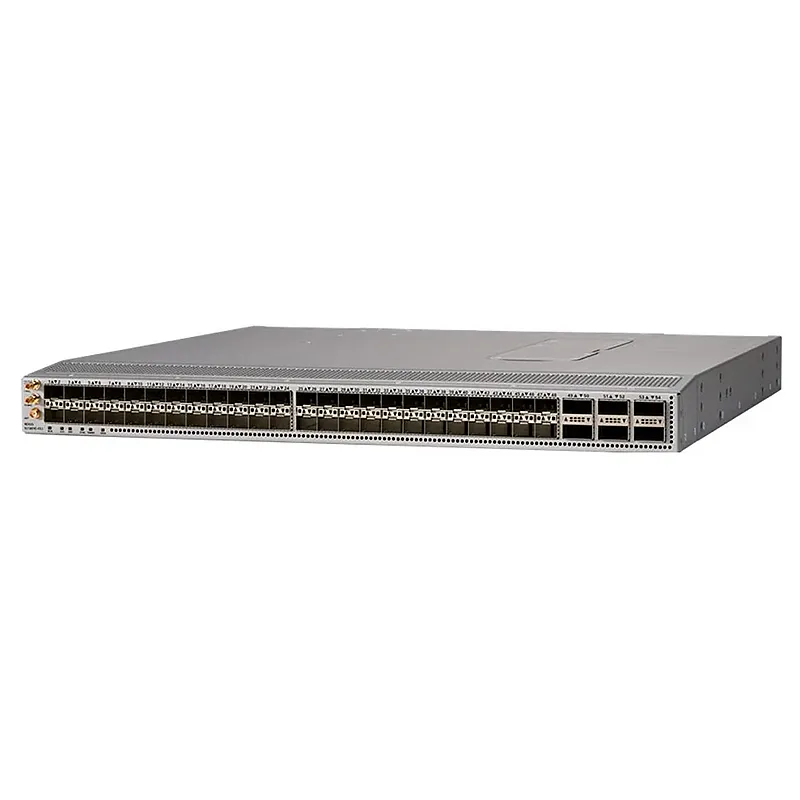

N9K-C93180YC-FX Overview
The Cisco Nexus 93180YC-FX Switch is a 1RU switch with latency of less than 1 microsecond that supports 3.6 Tbps of bandwidth and 1.2 bpps. The 48 downlink ports on the 93180YC-FX are capable of supporting 1-, 10-, or 25-Gbps Ethernet or as 16-, 32-Gbps Fibre Channel ports, creating a point of convergence for primary storage, compute servers, and back-end storage resources at the top of rack.
Quick Specs
| SKU | N9K-C93180YC-FX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet
16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Typical power (AC/DC) | 260W |
| USB ports | 1 |
| RS-232 serial ports | 1 |
Product Details
Cisco N9K-C93180YC-FX provides the following features and benefits:
??Architectural Flexibility
??Architectural Flexibility
??High Scalability, Flexibility, and Security
??Intelligent Buffer Management
??RDME over Converged Ethernet ?C RoCE Support
??LAN and SAN Convergence
??Hardware and Software High Availability
??Purpose-Built Cisco NX-OS Software Operating System with Comprehensive, Proven Innovations
??Cisco Tetration Analytics Platform Support
??Cisco Network Assurance Engine (NAE)
