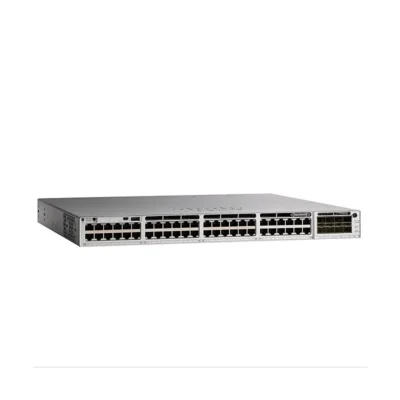

Cisco Catalyst 9300-48T-A Switch (C9300-48T-A)

Brand

Cisco

Model

C9300-48T-A

Total 10/100/1000 or Multigigabit copper ports

Default AC power supply

350WAC

Available PoE power

C9300-48T-A Overview

The Cisco? Catalyst? 9300 Series Switches are Cisco??s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48T-A?is 48-port data only, Network Advantage?Switch of 9300 series. Catalyst 9300 Series?are the next generation of the industry??s most widely deployed switching platform. At 480 Gbps, they are the industry??s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

Quick Spec

Table 1 shows the quick spec.

Product Code	C9300-48T-A
Product Description	Catalyst 9300 48-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports	48
Default AC power supply	350WAC
Available PoE power	—
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds

Brand	Cisco
Model	C9300-48T-A
Total 10/100/1000 or Multigigabit copper ports	48
Default AC power supply	350WAC
Available PoE power	—
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-350WAC-P/2
Switching capacity	256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299,000
