Cisco Catalyst WS-C3560X-48PF-S is 48 Gigabit Ethernet POE+ ports standalone switch in IP base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-48PF-S support IEEE802.3at standard to allocate up to 30W power on each port in total 800W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security?features and management features.
* NOTE: Image may not exactly match the product

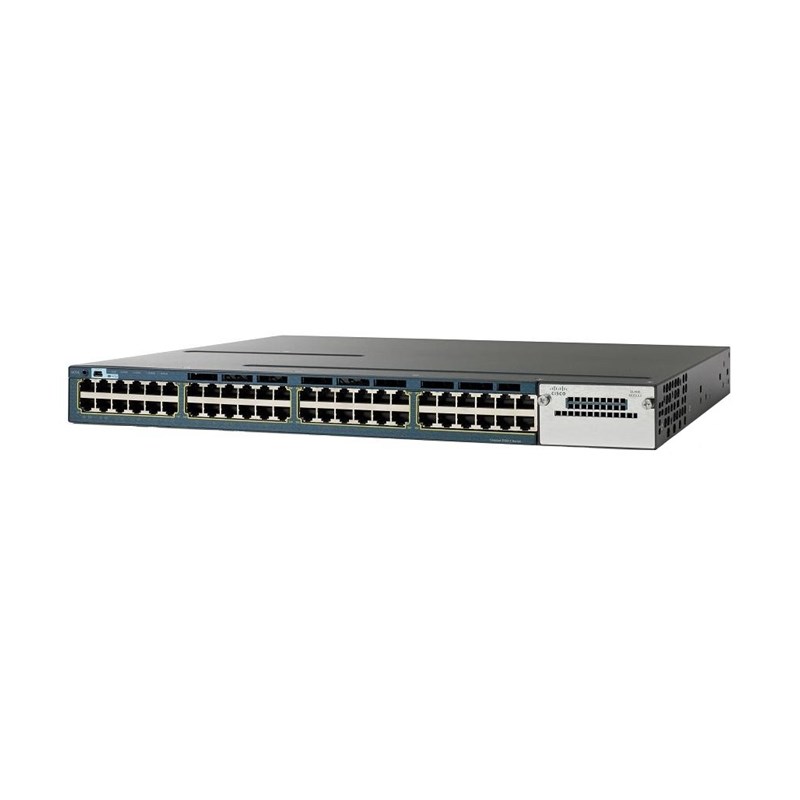

Cisco Catalyst 3560X Series 48 Port PoE Switch WS-C3560X-48PF-S
The Cisco Catalyst 3560X-48PF-S is a high-performance 48-port Power over Ethernet (PoE+) switch delivering 740W total power budget to support demanding network devices like IP phones, wireless access points, and security cameras. This enterprise-grade switch features four 10 Gigabit SFP+ uplink ports for high-speed connectivity, advanced Layer 3 routing capabilities, and comprehensive security features including 802.1X authentication and access control lists. With StackWise Plus technology enabling up to nine switches to operate as a single unit, flexible deployment options through PoE+ (30W per port) support, and Cisco’s renowned reliability backed by limited lifetime warranty, this switch provides scalable, energy-efficient network infrastructure ideal for medium to large enterprises seeking robust performance, simplified management, and future-ready connectivity.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | CISCO |
|---|---|
| Certification | FCC |
| Model Number | WS-C3560X-48PF-S |
| Product Description | Cisco Catalyst 3560X-48PF-E - Switch - managed - 48 x 10/100/1000 (PoE) - rack-mountable - PoE |
| Device Type | Switch - 48 ports - managed |
| Brand | CISCO |
|---|---|
| Certification | FCC |
| Model Number | WS-C3560X-48PF-S |
| Product Description | Cisco Catalyst 3560X-48PF-E – Switch – managed – 48 x 10/100/1000 (PoE) – rack-mountable – PoE |
| Device Type | Switch – 48 ports – managed |
| Enclosure Type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 (PoE) |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching fabric bandwidth : 160 Gbps |
| Capacity | Virtual interfaces (VLANs) : 1005 |
| Jumbo Frame Support | 9216 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
