* NOTE: Image may not exactly match the product

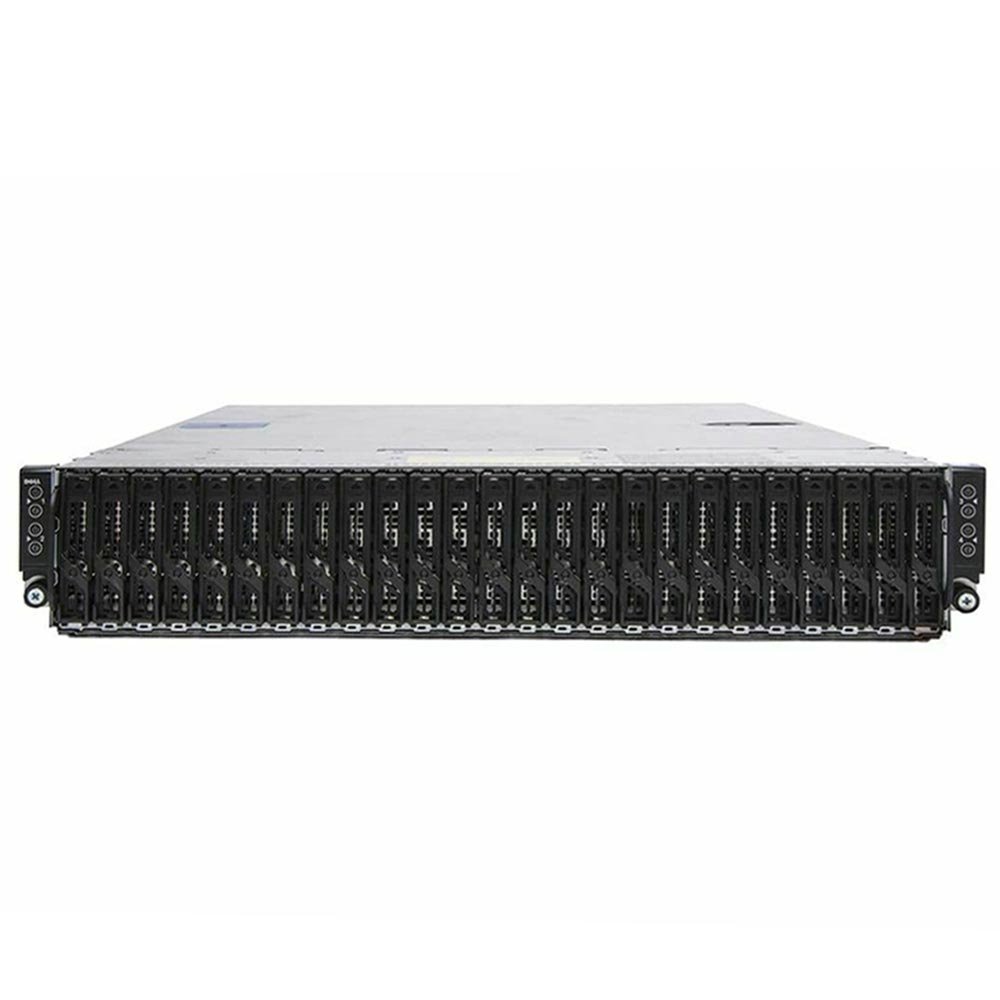

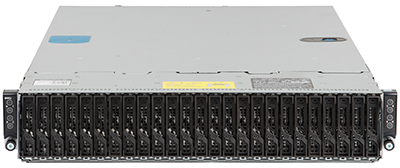

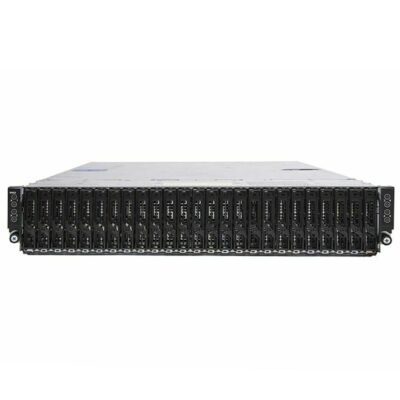

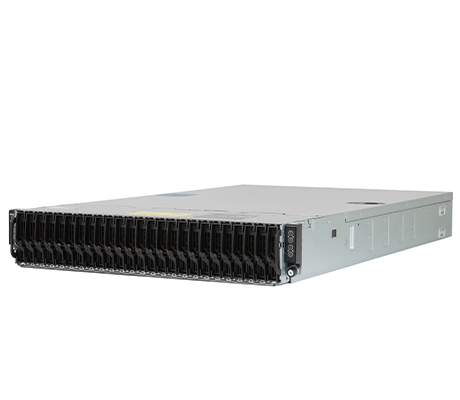

C6220 Dell PowerEdge 2U Rack Server

The Dell PowerEdge C6220 is a high-density 2U rack server engineered for maximum compute efficiency in data centers and cloud environments. This dual-node server delivers exceptional performance per rack unit by housing two independent server nodes in a single 2U chassis, effectively doubling compute capacity while minimizing space requirements.

**Key Features:**
– Dual Intel Xeon E5-2600 processor support per node (4 processors total)
– Up to 768GB DDR3 memory capacity across both nodes
– Hot-swappable 2.5″ drive bays with SAS/SATA support
– Redundant power supplies for enhanced reliability
– Integrated Dell Remote Access Controller (iDRAC) for remote management
– Energy-efficient design with optimized airflow

**Primary Benefits:**
– **Space Optimization**: 50% better compute density compared to traditional 1U servers
– **Cost Efficiency**: Reduced power, cooling, and rack space requirements lower total cost of ownership
– **Scalability**: Ideal for scale-out applications and virtualization workloads
– **Reliability**: Enterprise-grade components with redundant systems ensure minimal downtime
– **Management Simplicity**: Centralized monitoring and control through Dell’s management tools

**Unique Selling Points:**
The C6220 stands out as the optimal solution for organizations requiring maximum compute power in minimal space, making it perfect for web hosting, cloud services, high-performance computing clusters, and virtualized environments where density and efficiency are paramount.

Quote1 Piece(MOQ)

Premium Client Discounts Available

C6220 Dell PowerEdge 2U Rack Server



Dell PowerEdge C6220 Rack Server – Specifications
PROCESSOR
Up to four 2-socket servers, 2, 4, 6, or 8 cores per processor
Intel Xeon processor E5-2600 product family, with L3 cache: up to 20MB
OPERATING SYSTEM
Novell® SUSE® Linux Enterprise Server 11 SP2
Red Hat® Enterprise Linux®
Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Microsoft Windows® HPC Server 2008 R2 x64 SP1
CHIPSET
Intel C602 chipset
MEMORY
16 DIMM slots for up to 512GB per node:
4GB/8GB/16GB/32GB LV DDR3 RDIMM (1333MT/s)
4GB/8GB/16GB (1600MT/s 1.5v/1.35v) DDR3 RDIMM
STORAGE
Maximum internal storage: 48TB SATA or NL 48TB SAS
DRIVE BAYS AND HARD DRIVES
24 x 2.5” or 12 x 3.5” hard drive options
2.5” SAS (15K): 146GB, 300GB
2.5” SAS (10K): 300GB, 600GB, 900GB, 1.2TB
2.5” SATA and NL SAS (7.2K): 500GB, 1TB
2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB
2.5” SATA SSD (MLC): 160GB, 300GB, 600GB
3.5” SATA (7.2K): 500GB, 1TB, 2TB, 3TB, 4TB
3.5” SAS (15K): 300GB, 600GB
3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB
CONNECTIVITY
Intel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port
USB PORTS
2 external ports (back)
I/O SLOTS
1U-node version: 1 x8 mezzanine, 1 x 16 half-height (low profile), half-length slot
2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot
I/O ADAPTER OPTIONS
1Gb Ethernet:
Intel i350 quad-port 1Gb adapter
Intel 82580 ET quad-port 1Gb mezz
10Gb Ethernet:
Intel 82599 dual-port 10Gb DA/SFP+ mezz
Intel X520 dual-port 10Gb DA/SFP+ mezz
InfiniBand:
QLogic® QLE7340 QDR single-port adapter
Mellanox® ConnectX®-2 QDR dual-port mezz
Mellanox ConnectX-3 FDR single-port mezz
Dell X410 host interface card (HIC) for connection to the C410x
DRIVE CONTROLLER
Intel C602: SATA or SSD drives only; LSI® 2008 3Gbs SAS mezzanine or LSI 9265-8i 3Gbs (optional)
RAID CONTROLLER
LSI 2008 SAS mezzanine (optional)
LSI 9210-8i SAS add-in controller (optional)
LSI 9265-8i SAS add-in controller (optional)
POWER SUPPLIES

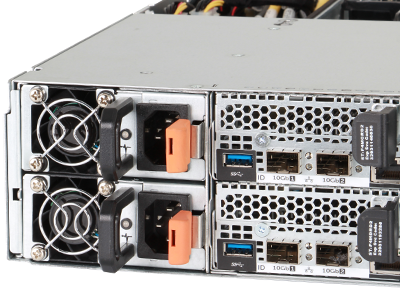

Dual hot-plug redundant high-efficiency 1200W/1400W power supplies
FANS
Shared cooling with quick-disconnect 4 x 60mm speed fans detectable with PWM control
HYPERVISORS
Citrix® XenServer®
VMware® vSphere® ESXi™
Microsoft Hyper-V® Server 2008 R2 SP1
VIDEO
Integrated AST2300 with up to 16MB video RAM
