- 24 High-Speed Ethernet Ports: Features 24 PoE+ enabled Gigabit Ethernet ports, offering robust connectivity for diverse network devices.
- Enhanced Power over Ethernet (PoE+) Support: Delivers up to 30W per port, ideal for powering VoIP phones, wireless access points, and surveillance cameras.
- Dual 10G Uplink Ports: Equipped with 2x10G uplink ports for high-speed connectivity, ensuring efficient data transfer and network scalability.
- Advanced Layer 3 Routing Capabilities: Supports Layer 3 routing features for enhanced network efficiency and traffic management.
- Energy Efficient Design: Optimized for low power consumption, contributing to reduced operational costs and environmental sustainability.
- Easy Configuration and Management: Intuitive management interface simplifies setup and ongoing administration, suitable for businesses with limited IT resources.
- Stackable for Future Growth: Allows stacking of multiple units, providing a scalable solution that grows with your business needs

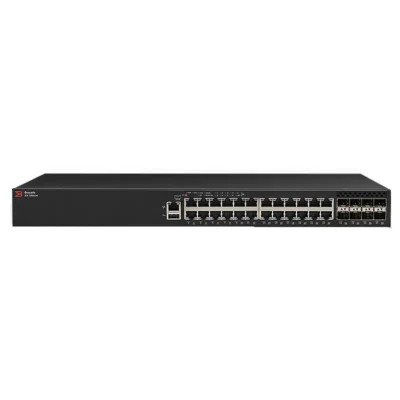

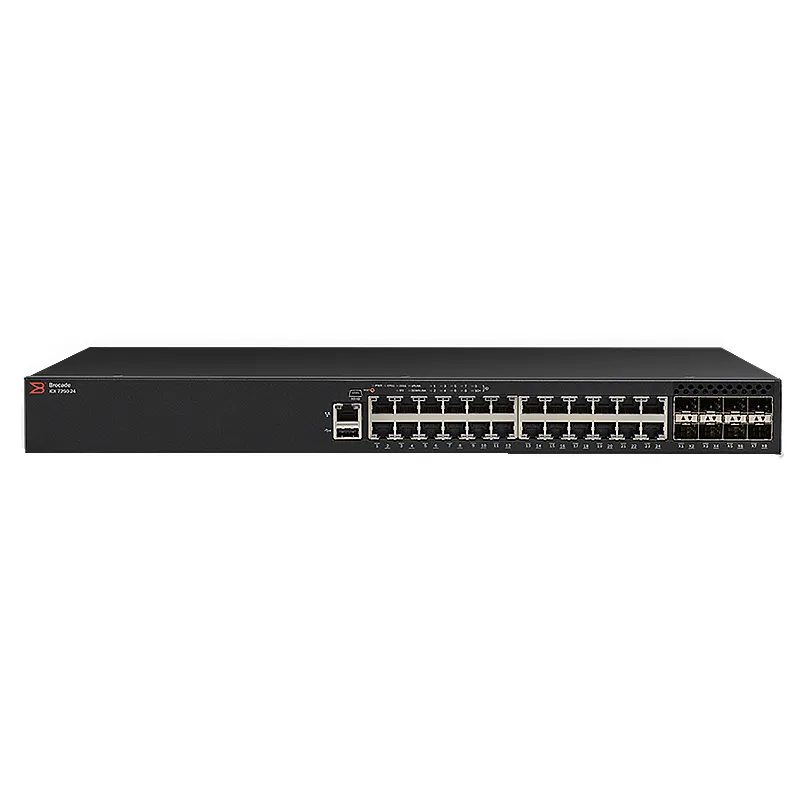

* NOTE: Image may not exactly match the product
Brocade Ruckus ICX7250-24P-2X10G | 24-Port PoE+ Gigabit Ethernet Switch with 2x10G Uplink Ports | High-Performance Network Solution
The Brocade Ruckus ICX7250-24P-2X10G is a high-performance 24-port PoE+ Gigabit Ethernet switch designed for enterprise networks requiring reliable power delivery and high-speed connectivity. This managed switch delivers 370W total PoE+ power budget across all ports, making it ideal for powering IP phones, wireless access points, security cameras, and IoT devices. Key features include two 10GbE SFP+ uplink ports for high-bandwidth backbone connections, advanced Layer 2/3 switching capabilities, and comprehensive security features including 802.1X authentication and ACLs. The switch offers exceptional scalability with stacking capabilities up to 12 units, centralized management through Ruckus management platforms, and enterprise-grade reliability with redundant power supply options. Its fanless design ensures silent operation for office environments while maintaining optimal performance. The ICX7250 stands out with its cost-effective PoE+ deployment, future-proof 10G uplinks, simplified network management, and Ruckus’s reputation for robust, carrier-grade networking solutions, making it an ideal choice for growing businesses and enterprise edge deployments.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Brocade |
|---|---|
| Model | ICX7250-24P-2X10G |
| Switch Type | Enterprise-Class Stackable Switch |
| Format | Stackable |
| Network Management Type | Managed |
| Brand | Brocade |
|---|---|
| Model | ICX7250-24P-2X10G |
| Switch Type | Enterprise-Class Stackable Switch |
| Format | Stackable |
| Network Management Type | Managed |
| Uplink Ports | Up to 8??10 GbE ports for uplinks or stacking |
| Uplink Interface | SFP & RJ45 |
| Primary Port Count | 24 |
| Primary Ports | 24 x RJ45 + 8 x SFP |
| Primary Port Speed | 10/100/1000Mbps + 10 Gbps |
| Switching Method | Wire-speed, nonblocking performance across all ports |
| VLAN Support | Yes |
| Jumbo Frames | 9216 bytes |
| PoE | Yes |
| Stackable | Yes |
| SNMP | Yes |
| QoS | Yes |
| LACP | Yes |
| Layer | Full Layer 3 |
| Port Mirroring | Yes |
| Module Support | Yes |
| LEDs | Standard indicator LEDs |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions | 1.72" x 17.32" x 11.02" |
| Weight | 10.43 lb |
| Temperature | -5 ??C to 50 ??C |
| Humidity | 0 – 95%, Non-condensing |
