| Brand | Brocade |
|---|---|
| Model | ICX7450-48P-E |
| Format | Rack-mountable – 1U |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Network Management Type | Managed |
| Primary Ports | 40 x 1000Base-T – RJ-45 – PoE+ – 30 W, 8 x 1000Base-T – RJ-45 – PoH – 95 W |
| MAC Address Table | 32000 entries |
| VLAN Support | Virtual interfaces (VLANs) : 4096 |
| Jumbo Frames | 9216 bytes |
| Protocols Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| PoE | Yes |
| Stackable | Yes |
| SNMP | Yes |
| QoS | Yes |
| LACP | Yes |
| Layer | L3 |
| Port Mirroring | Yes |
| Dimensions | 1.72" x 17.32" x 15.50" |
| Weight | 15.87 lbs. |
| Temperature | Operating Temperature: -5 ??C – 50 ??C Storage Temperature: -25 ??C – 70 ??C |
| Humidity | 5% – 95%, Non-condensing |
* NOTE: Image may not exactly match the product

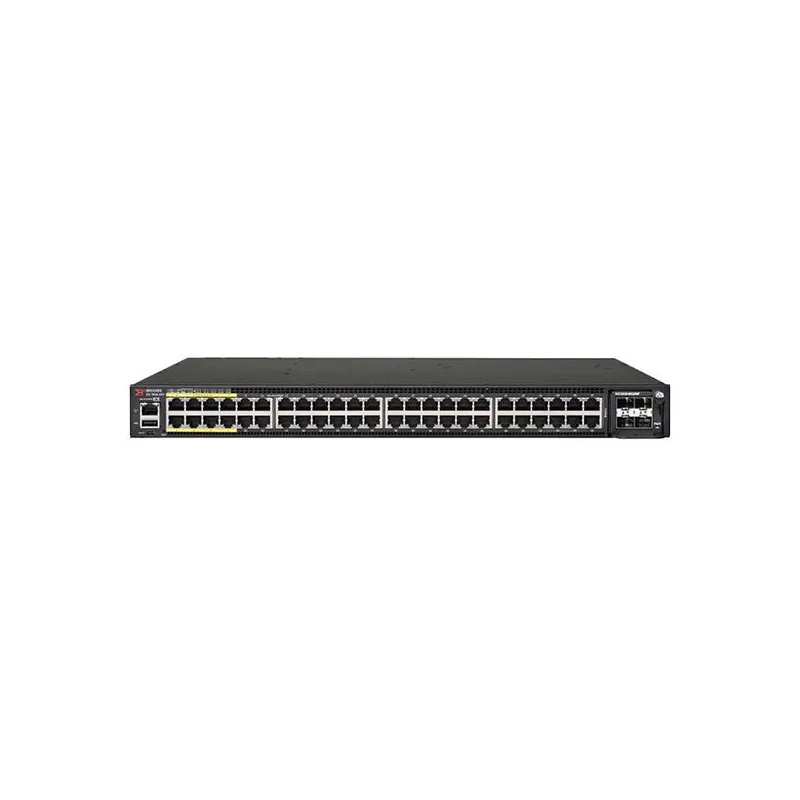

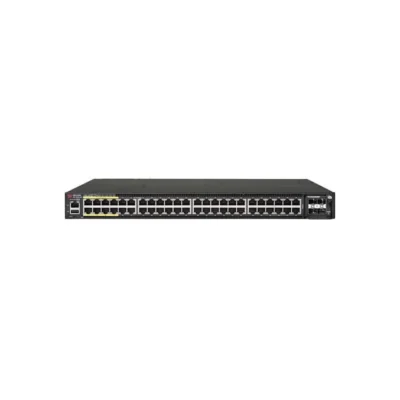

Brocade ICX7450-48P-E Managed Switch
The Brocade ICX7450-48P-E is a high-performance managed switch delivering enterprise-grade networking with 48 Power-over-Ethernet (PoE+) ports and 4 SFP+ 10GbE uplinks. This stackable Layer 3 switch provides up to 740W PoE budget, supporting power-hungry devices like wireless access points, IP cameras, and VoIP phones without additional power infrastructure.
Key features include advanced security with 802.1X authentication, comprehensive VLAN support, and robust Quality of Service (QoS) capabilities for traffic prioritization. The switch offers flexible stacking up to 12 units for simplified management and scalability, while OpenFlow support enables software-defined networking integration.
Built for reliability with redundant power supply options and fanless operation in specific configurations, the ICX7450-48P-E delivers wire-speed performance with low latency. Its energy-efficient design reduces operational costs while providing centralized management through intuitive web interfaces and CLI.
Ideal for medium to large enterprises, educational institutions, and service providers requiring high-density PoE deployment, advanced routing capabilities, and future-ready network infrastructure with seamless scalability and comprehensive security features.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Brocade |
|---|---|
| Model | ICX7450-48P-E |
| Format | Rack-mountable - 1U |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Network Management Type | Managed |
