Primary Port Speed 10/100/1000Mbps
* NOTE: Image may not exactly match the product

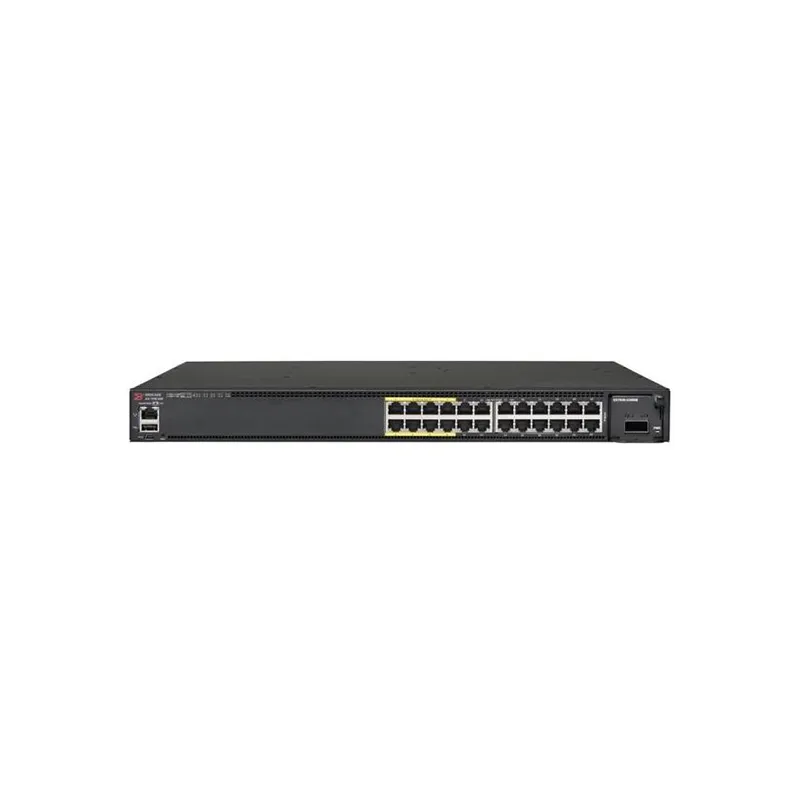

Brocade ICX7450-24P Managed Switch
The Brocade ICX7450-24P is a high-performance managed switch delivering enterprise-grade networking with 24 PoE+ ports and advanced Layer 3 capabilities. Key features include 480W PoE budget for powering IP phones, wireless access points, and security cameras; stackable design supporting up to 12 units for seamless scalability; and robust security with 802.1X authentication and ACLs. The switch offers exceptional value through its energy-efficient operation, comprehensive management tools including web GUI and CLI, and reliable performance with non-blocking architecture. Its unique selling points include flexible deployment options, future-proof 10GbE uplink capabilities, and Brocade’s proven enterprise reliability at a competitive price point, making it ideal for growing businesses requiring dependable, scalable network infrastructure.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Brocade |
|---|---|
| Model | ICX7450-24P |
| Format | Stackable |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Network Management Type | Managed |
| Brand | Brocade |
|---|---|
| Model | ICX7450-24P |
| Format | Stackable |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Network Management Type | Managed |
| Uplink Ports | auto-uplink |
| Primary Ports | 24 x RJ45 |
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 32K |
| VLAN Support | Yes |
| Jumbo Frames | 9216 bytes |
| Protocols Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD, Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Security | Encryption Algorithm: AES |
| PoE | Yes |
| Stackable | Yes |
| SNMP | SNMP 1, SNMP 3, SNMP 2c |
| QoS | Yes |
| LACP | Yes |
| Port Mirroring | Yes |
| Dimensions | 1.72" x 17.32" x 15.50" |
| Weight | 15.21 lbs. |
| Temperature | Operating temperature: -5 ??C to 50 ??C, Storage temperature: -25 ??C to 70 ??C |
| Humidity | Operating: 5 – 95% (non-condensing), Storage: 0 – 95% (non-condensing) |
