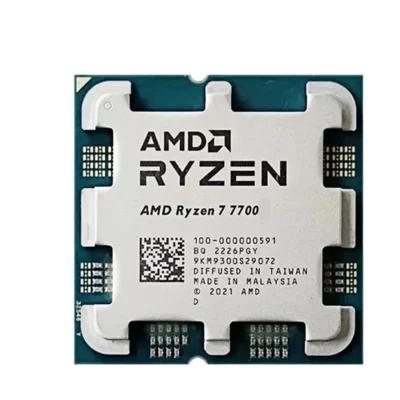

AMD 7 7700 CPU Socket AM5 Desktop processor

Brand

AMD

Products Status

New

Product Family

AMD Ryzen

Series

AMD Ryzen 7 7000 Series

Part Number

AMD Ryzen 7 7700

Brand	AMD
Products Status	New
Product Family	AMD Ryzen
Series	AMD Ryzen 7 7000 Series
Part Number	AMD Ryzen 7 7700
Product ID Tray	100-000000592
Application	Desktops
CPU Socket Type	AM5
Code Name	Raphael AM5
Total Cores	8
Total Threads	16
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Architecture	Zen 4
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5.3 GHz
Base Clock	3.8 GHz
L2 Cache	8 MB
L3 Cache	32 MB
TDP	65 W
Manufacturing Tech	TSMC 5nm FinFET
CPU Compute Die (CCD) Size	71mm2
Unlocked for Overclocking	Yes
AMD EXPO Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)	95C
*OS Support	RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 2.0 (480Mbps) Ports	1
PCI Express? Version	PCIe 5.0
Native PCIe Lanes (Total/Usable)	24, 28
NVMe Support	Boot, RAID0, RAID1, RAID10
Memory Type	DDR5
Memory Channels	2
Max. Memory	128 GB
Max Memory by Socket	"memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R"
ECC Support	Yes (Requires mobo support)
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C DisplayPort Alternate Mode	Yes
