| Brand | AMD |
|---|---|
| Products Status | New |
| Application | Workstation |
| ROPs | 32 |
| Interface | PCIe 3.0 x16 |
| Memory Size | 8GB |
| Bus Width | 256bit |
| Cores | 1792 |
| Memory Type | GDDR5 |
| Features | 1792 Stream Processors (28 CUs), 256-Bit Memory Interface, 3.9 TFLOPS Peak Single Precision Compute Performance, 75W TDP Maximum Power Consumption, AMD Eyefinity Multidisplay Technology, Application Optimizations 8GB GDDR5 GPU Memory, Direct Graphics Memory Access (DirectGMA), FCC, CE, C-Tick, BSMI, KCC, UL, VCCL, RoHS and WEEE Compliance, Four DisplayPort Outputs (Ready For DisplayPort 1.4 HDR), Full-Height/Half-Length Single-Slot Form Factor, OpenCL, DirectX, OpenGL, and Vulkan support, Support for Microsoft Windows 10, Windows 7, and Linux (64-Bit) |
| Cooler | With Fan |
| Form Factor | Full-Height |
| Memory Interface | 256-bit |
| OpenGL | OpenGL 4.5 |
| Series | AMD Radeon Pro |
| DisplayPort | 4 x DP 1.4 |
| Packaging Details | Work Packages |
| GPU | Radeon Pro WX 5100 |
| Core Clock | Peak: 1086 MHz, Typical: 713 MHz |
| Slot Width | Single slot |
| DirectX | DirectX 12 |
| Operating Systems Supported | Linux 64-bit, Windows 10 64-bit, Windows 7 64-bit |
| Model | 100-505940 |
| Digital Resolution | 5120 x 2880 |
| Chipset Manufacturer | AMD |
| System Requirements | Typical Board Power: 75W |
| Stream Processors | 1792 Stream Processing Units |
* NOTE: Image may not exactly match the product

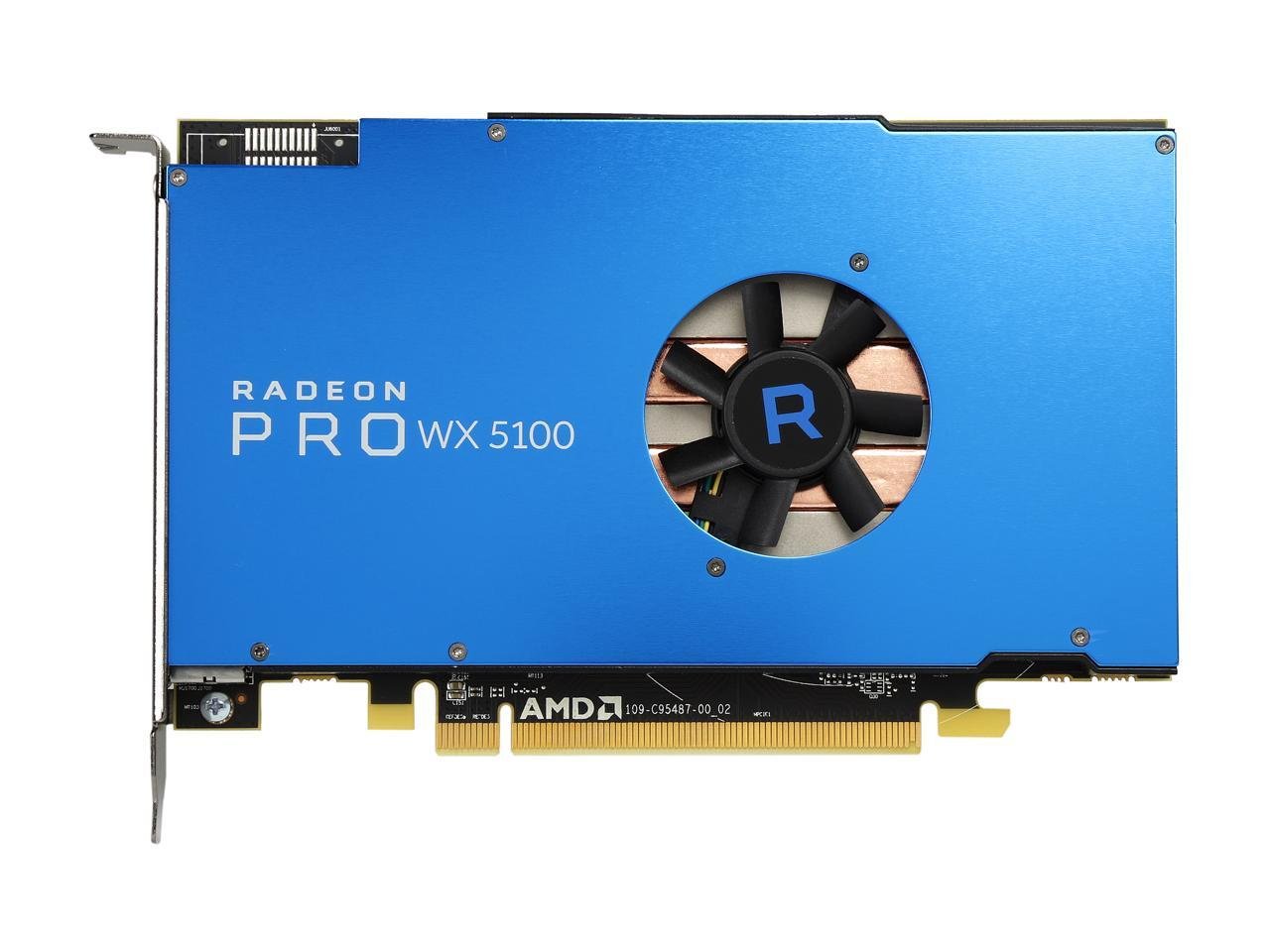

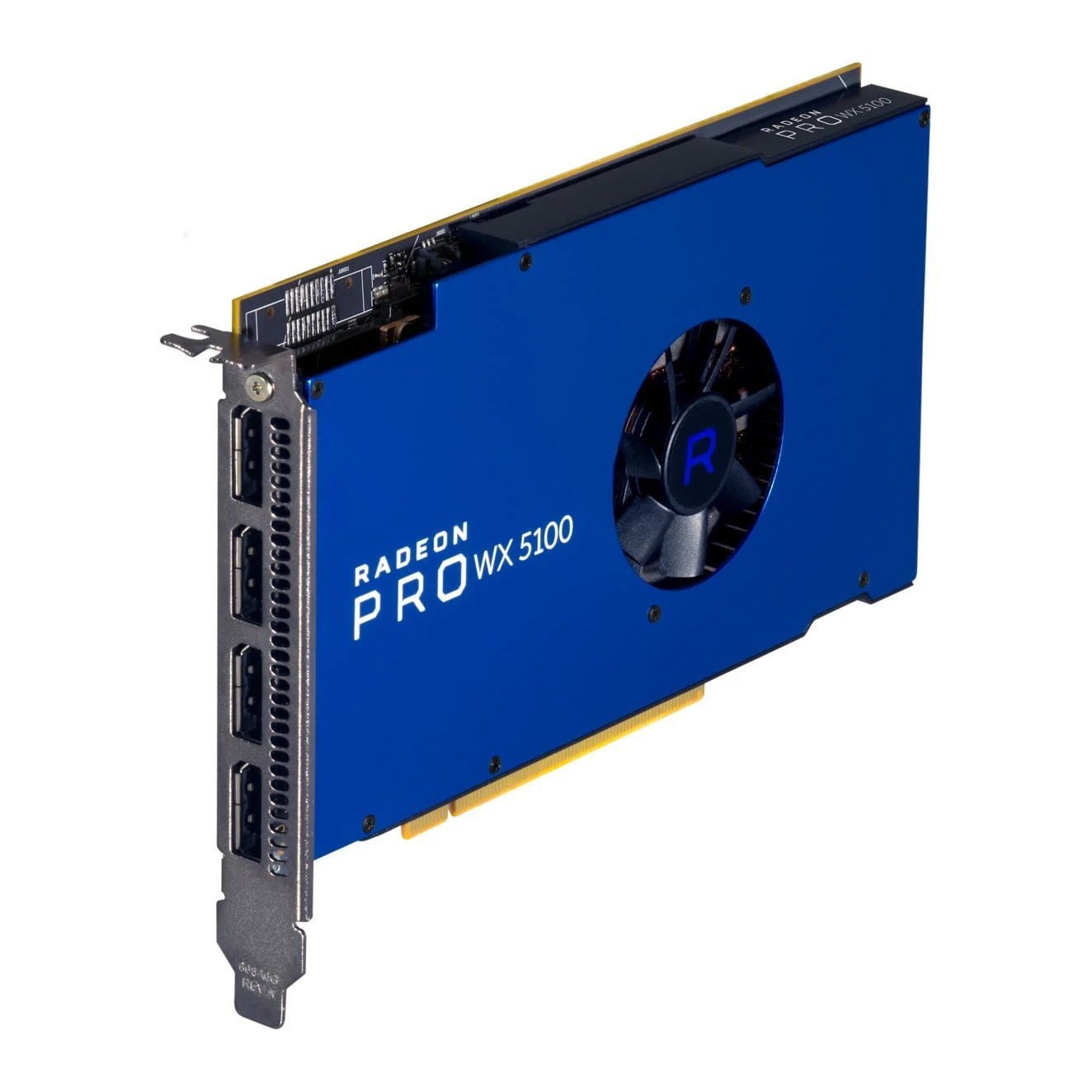

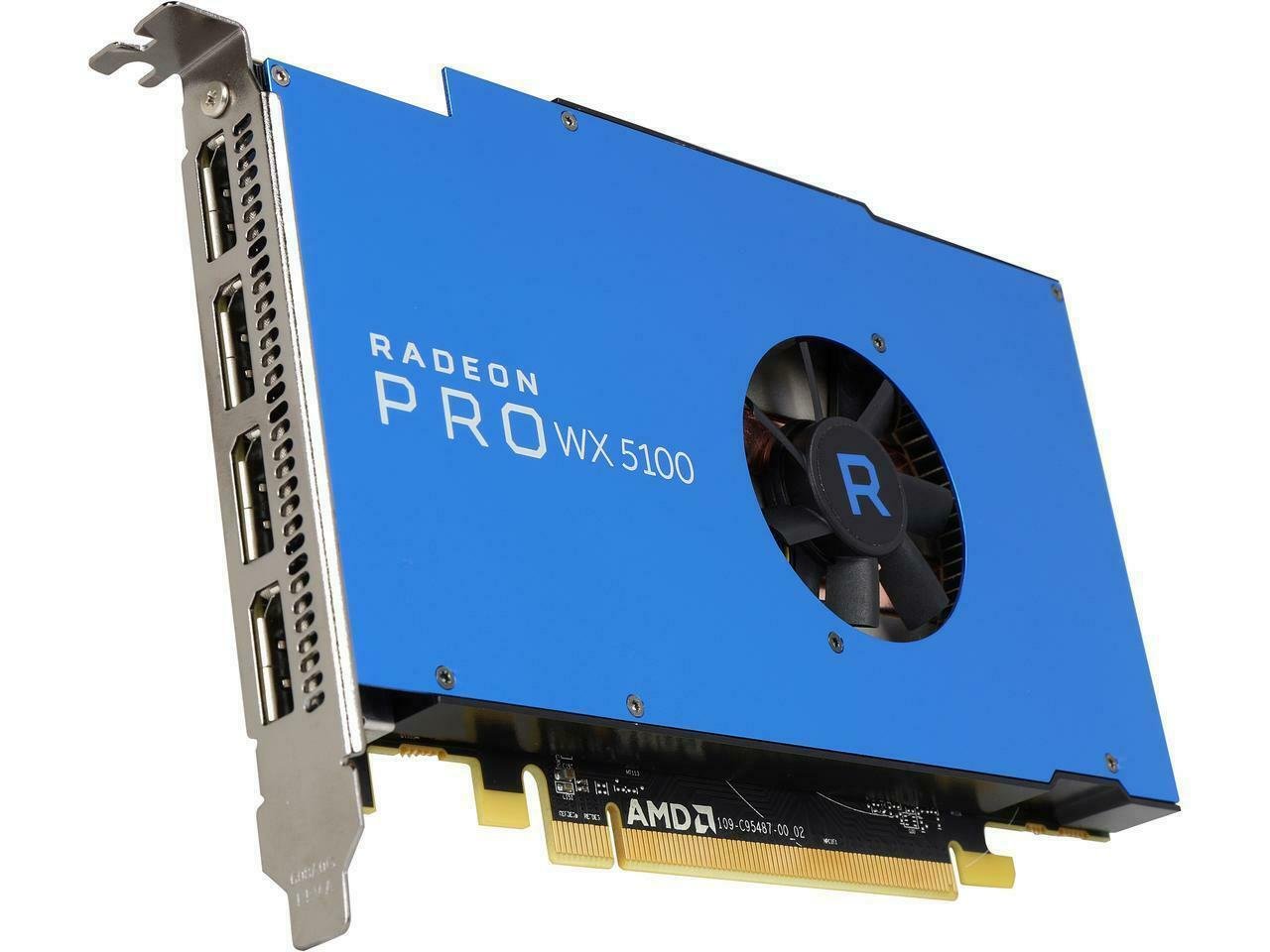

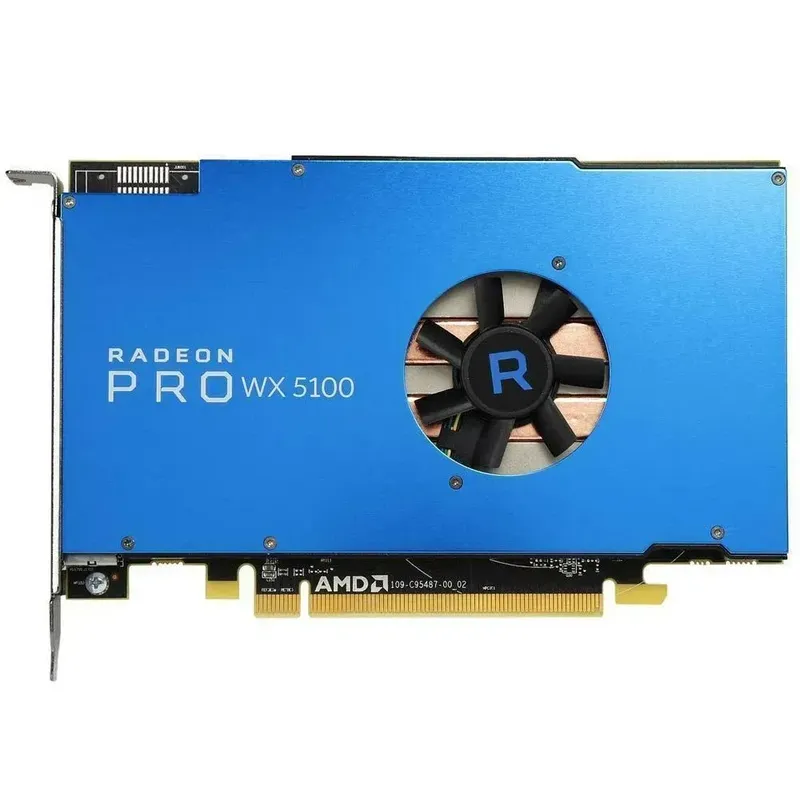

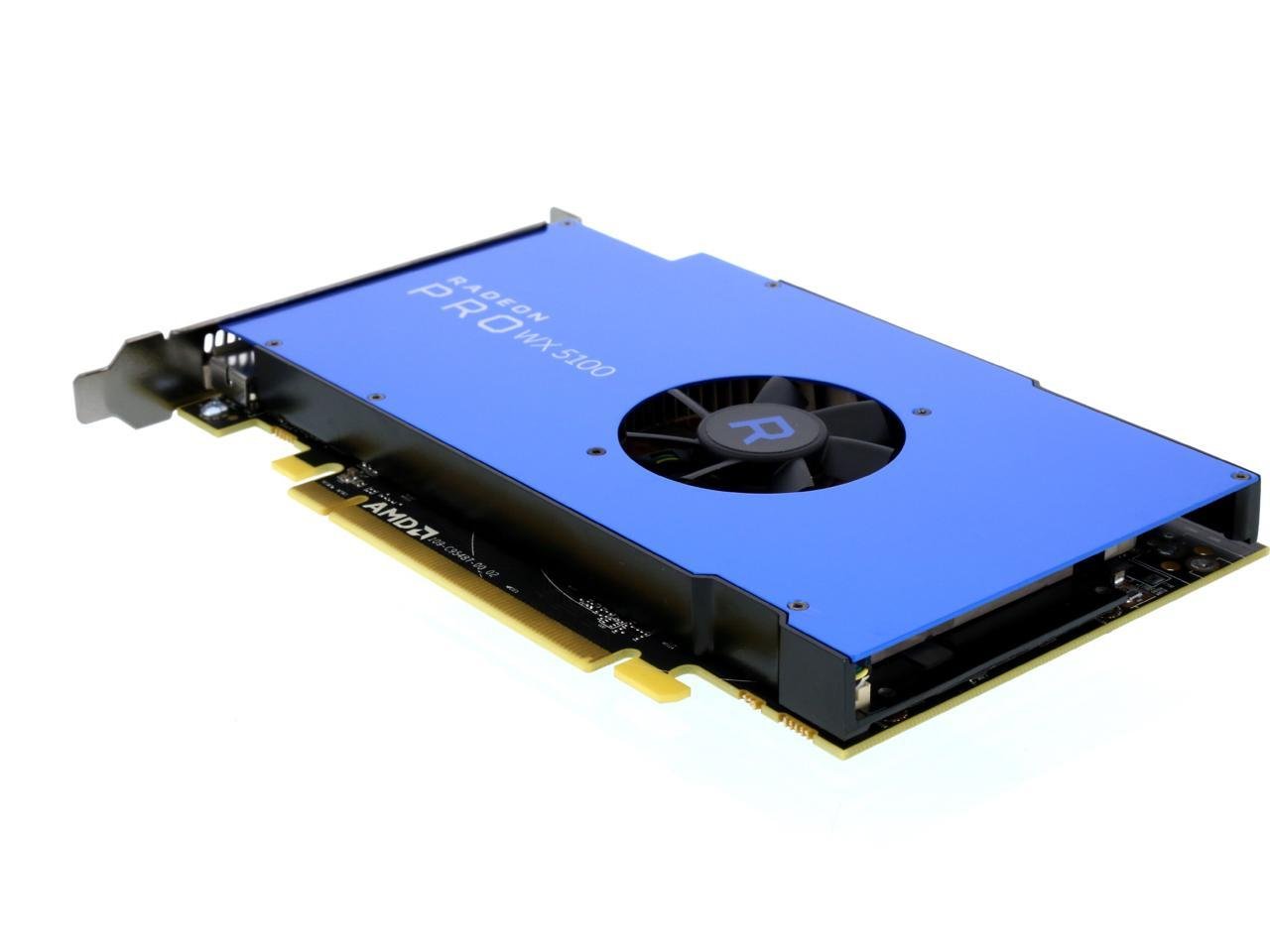

Radeon Pro WX 5100 100-505940 8GB 256-bit GDDR5 Workstation Video Card
The Radeon Pro WX 5100 is a professional-grade workstation graphics card featuring 8GB of high-speed GDDR5 memory with a 256-bit interface, delivering exceptional performance for CAD, 3D modeling, and content creation workflows. Built on AMD’s Polaris architecture, it offers hardware-accelerated viewport performance, certified driver support for major professional applications like SolidWorks and AutoCAD, and DisplayPort 1.4 connectivity supporting up to four 4K displays simultaneously. This mid-range workstation solution provides reliable, ISV-certified performance for engineers, architects, and designers who require professional-grade graphics capabilities without the premium cost of high-end workstation cards, making it ideal for small to medium-sized design teams and individual professionals seeking proven stability and application optimization.
