| Brand | AMD |
|---|---|
| Products Status | New |
| Product Family | AMD Ryzen |
| Series | AMD Ryzen 5 8000 Series |
| Part Number | AMD Ryzen 5 8600G |
| Product ID Tray | 100-000001237 |
| Application | Desktops |
| CPU Socket Type | AM5 |
| Code Name | Phoenix |
| Total Cores | 6 |
| Total Threads | 12 |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Architecture | Zen 4 |
| Multithreading (SMT) | Yes |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 4.3 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| TDP | 65 W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Manufacturing Tech | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95C |
| *OS Support | RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express? Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 16, 20 |
| NVMe Support | Boot, RAID0, RAID1 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| Max Memory by Socket | "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R" |
| Graphics Model | AMD Radeon 760M |
| Graphics Core Count | 8 |
| Graphics Frequency | 2800 MHz |
| DirectX Version | 12 |
| DisplayPort Version | 2.1 |
| DisplayPort Extensions | Adaptive-Sync, HDR Metadata, UHBR10 |
| DisplayPort Max Refresh Rates (SDR) | 1920×1080 @ 600Hz, 2560×1440 @ 480Hz, 3440×1440 @ 360Hz, 3840×2160 @ 240Hz, 7680×4320 @ 60Hz |
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1080p630 8bpc H.265, 1080p864 8/10bpc AV1, 1440p373 8bpc H.264, 1440p373 8bpc H.265, 1440p513 8/10bpc AV1, 2160p175 8bpc H.264, 2160p175 8bpc H.265, 2160p240 8/10bpc AV1, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 |
| Max Video Decode Bandwidth | 1080p1200 8bpc H.264, 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc H.265, 1080p786 8/10bpc VP9, 1080p960 8/10bpc AV1, 2160p196 8/10bpc H.265, 2160p196 8/10bpc VP9, 2160p240 8/10bpc AV1, 2160p300 8bpc H.264, 4320p49 8/10bpc H.265, 4320p49 8/10bpc VP9, 4320p60 8/10bpc AV1, 4320p75 8bpc H.264 |
| AMD SmartAccess Memory | Available |
| AMD Ryzen AI | Available |

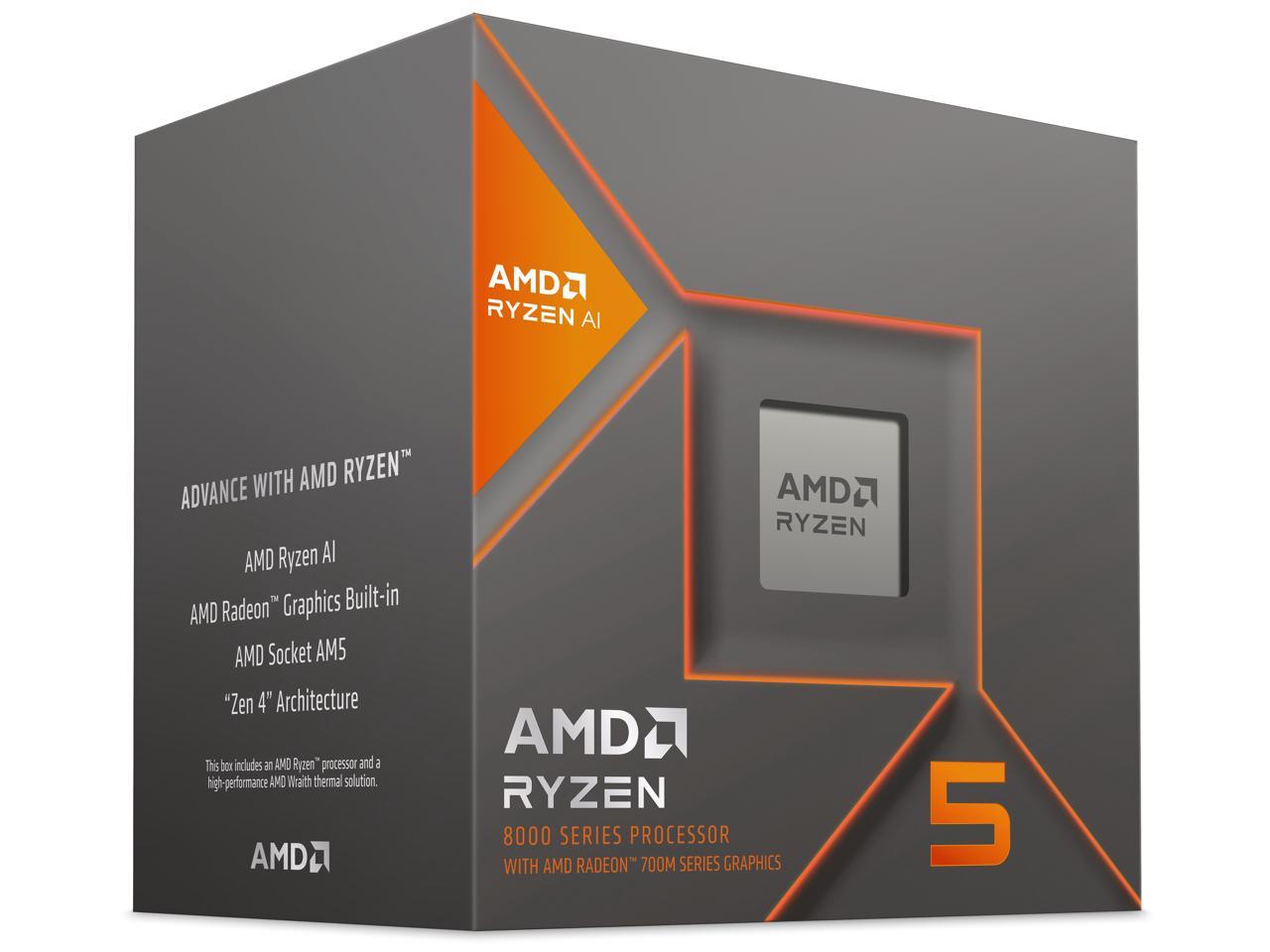

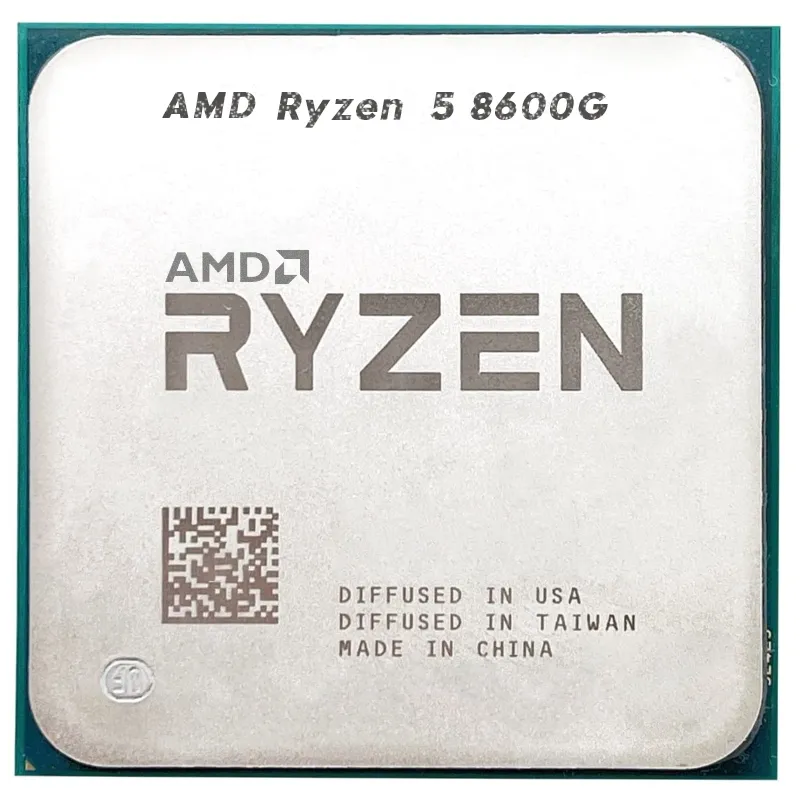

* NOTE: Image may not exactly match the product
AMD 5 8600G CPU Socket AM5 Desktop processor
The AMD Ryzen 5 8600G is a powerful 6-core, 12-thread desktop processor built on the advanced 4nm Zen 4 architecture for Socket AM5. This APU (Accelerated Processing Unit) features integrated Radeon 760M graphics with 8 compute units, delivering exceptional performance for both CPU-intensive tasks and 1080p gaming without requiring a dedicated graphics card. With base clocks of 4.3GHz and boost speeds up to 5.0GHz, plus 22MB of total cache, it excels at productivity workloads, content creation, and multitasking. The processor supports DDR5 memory, PCIe 4.0, and includes advanced features like AMD EXPO memory overclocking and Precision Boost technology. Its integrated graphics capability makes it ideal for budget-conscious builders, compact systems, or users who want solid gaming performance while maintaining upgrade flexibility for future discrete GPU additions.
$152.2710 pcs(MOQ)
Bulk Order Discounts Available
