| Brand | AMD |
|---|---|
| Products Status | New |
| Product Family | AMD Ryzen |
| Series | AMD Ryzen 5 8000 Series |
| Part Number | AMD Ryzen 5 8500G |
| Product ID Tray | 100-000000931, 100-000001491 |
| Application | Desktops |
| CPU Socket Type | AM5 |
| Code Name | Phoenix |
| Total Cores | 6 |
| Total Threads | 12 |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Architecture | 2x Zen 4, 4x Zen 4c |
| Multithreading (SMT) | Yes |
| Max. Boost Clock | Up to 5 GHz |
| Max Zen4c Clock | Up to 3.7 GHz |
| Base Clock | 3.5 GHz |
| Zen4 Base Clock | 4.1 GHz |
| Zen4c Base Clock | 3.2 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| TDP | 65 W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Manufacturing Tech | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 137mm2 |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95C |
| *OS Support | RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express? Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 10, 14 |
| NVMe Support | Boot, RAID0, RAID1 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| Max Memory by Socket | "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R" |
| Graphics Model | AMD Radeon 740M |
| Graphics Core Count | 4 |
| Graphics Frequency | 2800 MHz |
| DirectX Version | 12 |
| DisplayPort Version | 2.1 |
| DisplayPort Extensions | Adaptive-Sync, HDR Metadata, UHBR10 |
| DisplayPort Max Refresh Rates (SDR) | 1920×1080 @ 600Hz, 2560×1440 @ 480Hz, 3440×1440 @ 360Hz, 3840×2160 @ 240Hz, 7680×4320 @ 60Hz |
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1080p630 8bpc H.265, 1080p864 8/10bpc AV1, 1440p373 8bpc H.264, 1440p373 8bpc H.265, 1440p513 8/10bpc AV1, 2160p175 8bpc H.264, 2160p175 8bpc H.265, 2160p240 8/10bpc AV1, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 |
| AMD SmartAccess Memory | Available |
* NOTE: Image may not exactly match the product

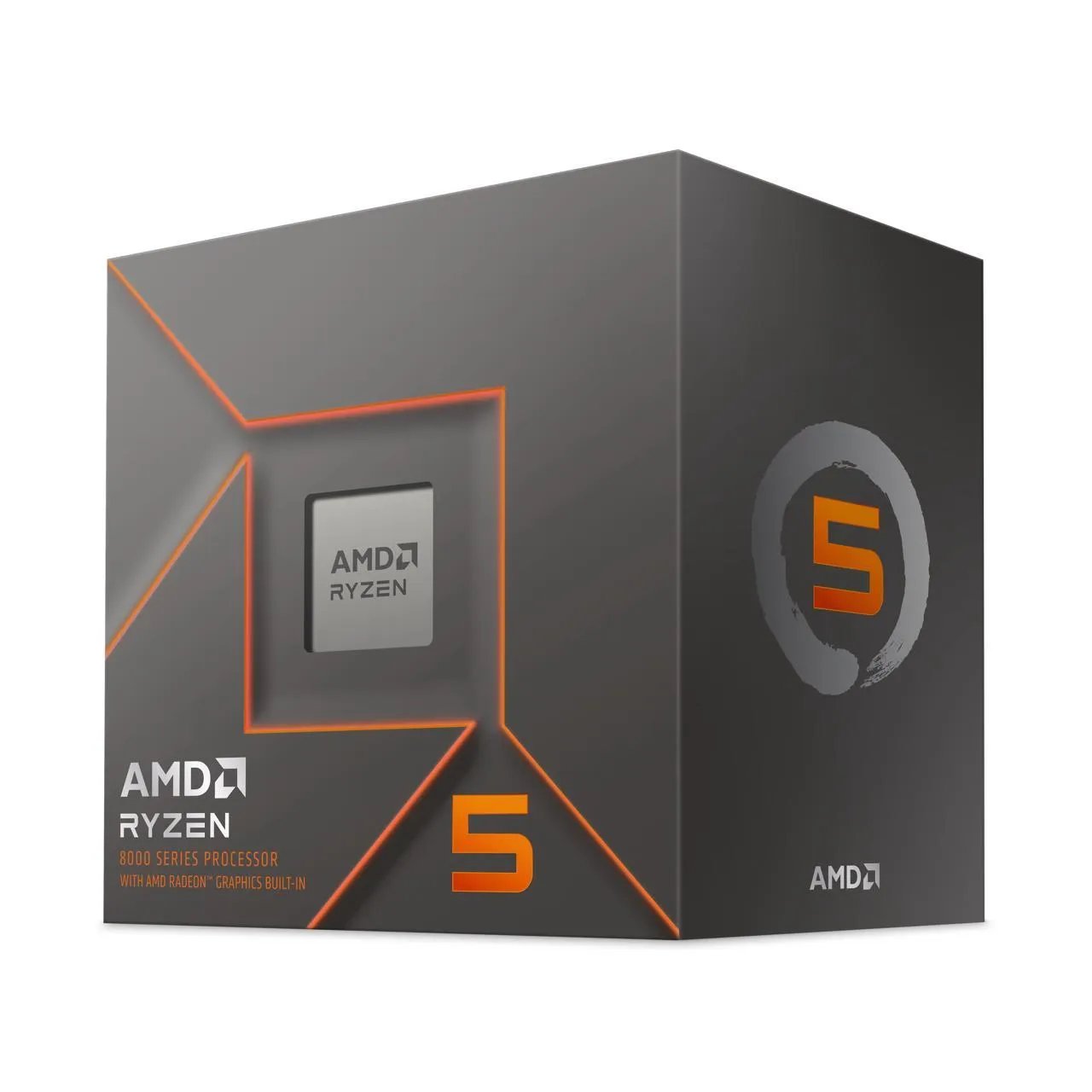

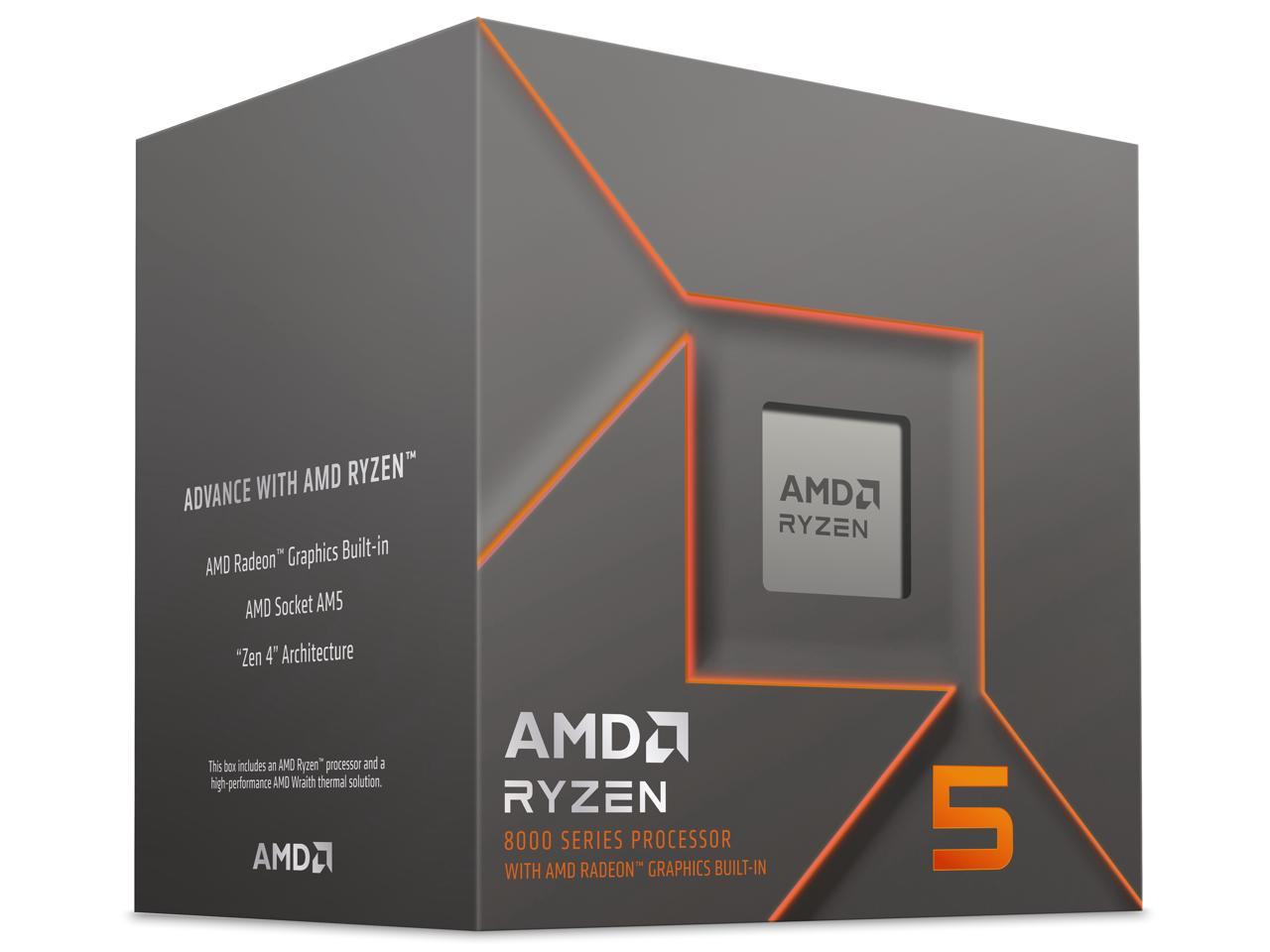

AMD 5 8500G CPU Socket AM5 Desktop processor
The AMD Ryzen 5 8500G is a powerful Socket AM5 desktop processor featuring integrated Radeon graphics, delivering exceptional performance for both computing and gaming without requiring a dedicated graphics card. Built on advanced 4nm technology, this APU combines 6 high-performance cores with robust integrated graphics capabilities, making it ideal for budget-conscious builders, compact systems, and users seeking reliable 1080p gaming performance. Key benefits include excellent power efficiency, support for DDR5 memory and PCIe 5.0, future-proof AM5 platform compatibility, and the ability to handle demanding applications while maintaining cool, quiet operation. The 8500G stands out as the perfect solution for streamers, content creators, and gamers who want premium performance and integrated graphics in a single, cost-effective package.
