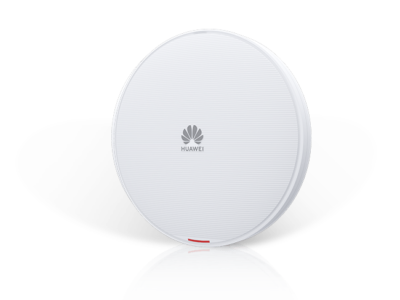

* NOTE: Image may not exactly match the product

Airengine5761-11 (11ax room type, 2 + 2 dual frequency, smart antenna, USB, Bluetooth)

**Airengine5761-11: Next-Generation Wi-Fi 6 Access Point**

The Airengine5761-11 delivers cutting-edge 802.11ax (Wi-Fi 6) technology in a compact room-type design, featuring dual-band 2×2 MIMO configuration for enhanced wireless performance. Its intelligent smart antenna system automatically optimizes signal coverage and reduces interference, ensuring reliable connectivity throughout any space. The integrated USB and Bluetooth capabilities provide versatile connectivity options for IoT devices and peripheral integration. This access point combines superior wireless speeds, improved network efficiency, and multi-protocol support, making it ideal for modern smart offices, hotels, and residential environments requiring robust, future-ready wireless infrastructure with seamless device connectivity.

Quote1 Piece(MOQ)

Inquiry

Brand	Huawei
Warranty	1 Year
Dimensions (Diameter x Height)	220 x 50 mm
Power Input	DC: 12 V 10%, PoE power supply: In compliance with 802.3at/af. Note: When 802.3af power is supplied, the USB port is disabled.
Maximum Power Consumption	15.3 W (excluding USB), Note: The actual maximum power consumption depends on local laws and regulations.

Description
Additional information

A next generation indoor Wi-Fi 6 (802.11ax) Access Point (AP), AirEngine 5761-11 features built-in Smart Antennas where the Wi-Fi signal follows users, delivering always-on coverage. Supporting 2×2 Multiple-Input Multiple-Output (MIMO), this AP can simultaneously deliver services on both the 2.4 GHz and 5 GHz frequency bands, with a rate of up to 1.775 Gbit/s.

AirEngine 5761-11 excels in scenarios requiring high bandwidth and a high-quality network experience, from small and midsize enterprise offices and hospital to cafes.

Brand	Huawei
Warranty	1 Year
Dimensions (Diameter x Height)	220 x 50 mm
Power Input	DC: 12 V 10%, PoE power supply: In compliance with 802.3at/af. Note: When 802.3af power is supplied, the USB port is disabled.
Maximum Power Consumption	15.3 W (excluding USB), Note: The actual maximum power consumption depends on local laws and regulations.
Maximum Number of Users	1024, Note: The actual number of users varies according to the environment.
Operating Temperature	C10C to +50C
Antenna Type	Built-in Smart Antennas
MIMO:Spatial Streams	2.4 GHz: 2×2:2; 5 GHz: 2×2:2
Radio Protocols	802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate	1.775 Gbit/s
